Medium Excavators

SK180-11

Tier IV Final Compliant Engine
Enhanced durability takes productivity to a new level.
A cab that puts the operator ﬁrst is key to improved safety.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

Request a quote

Download Brochure

SK180-11 & SK180LC-11 Tier 4 Brochure

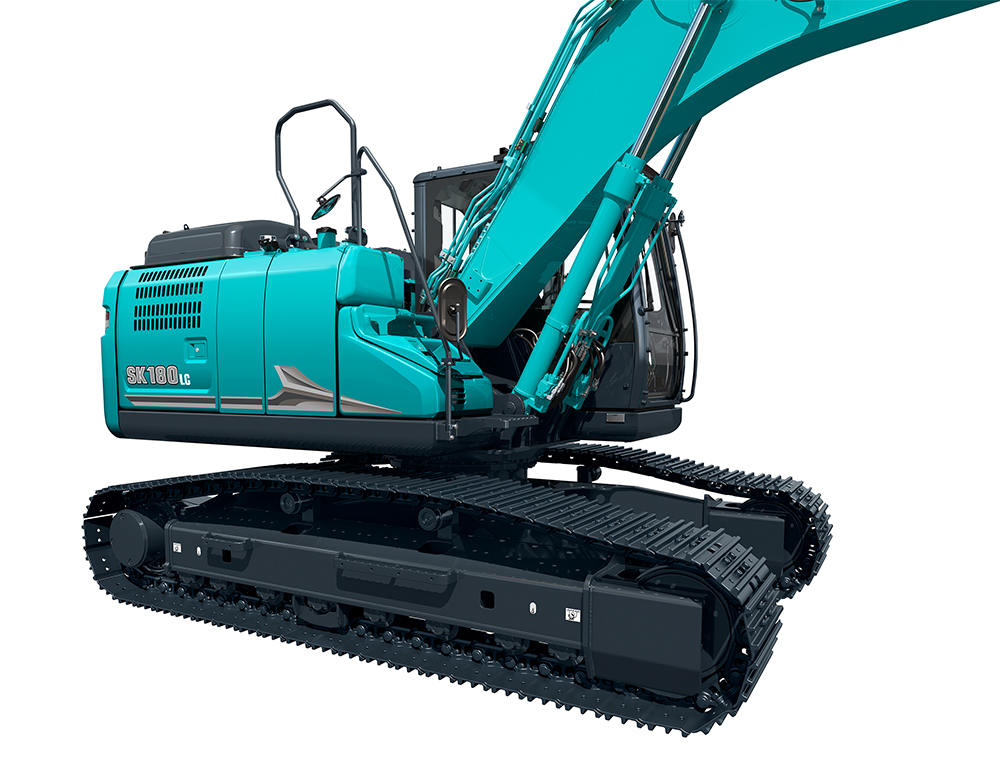

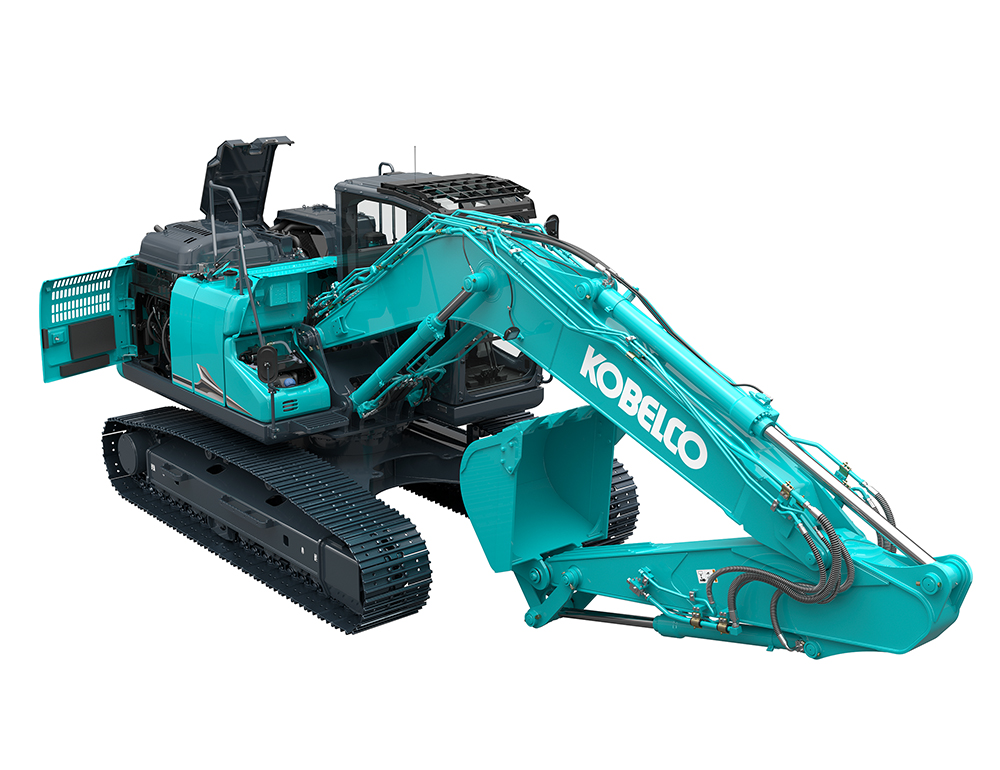

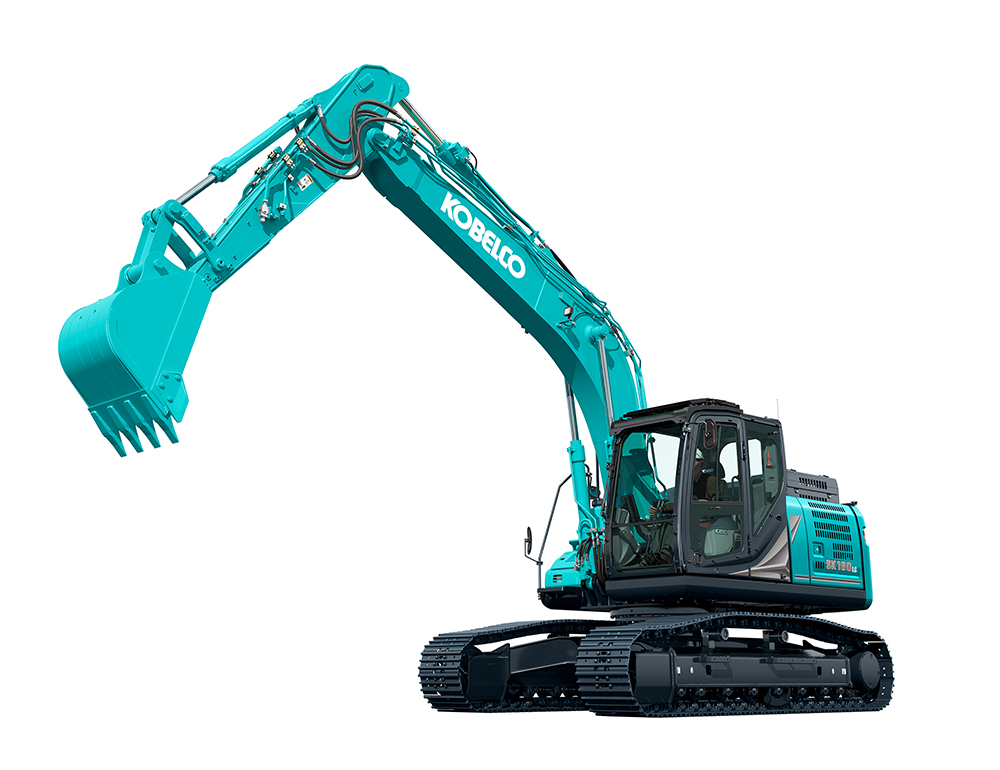

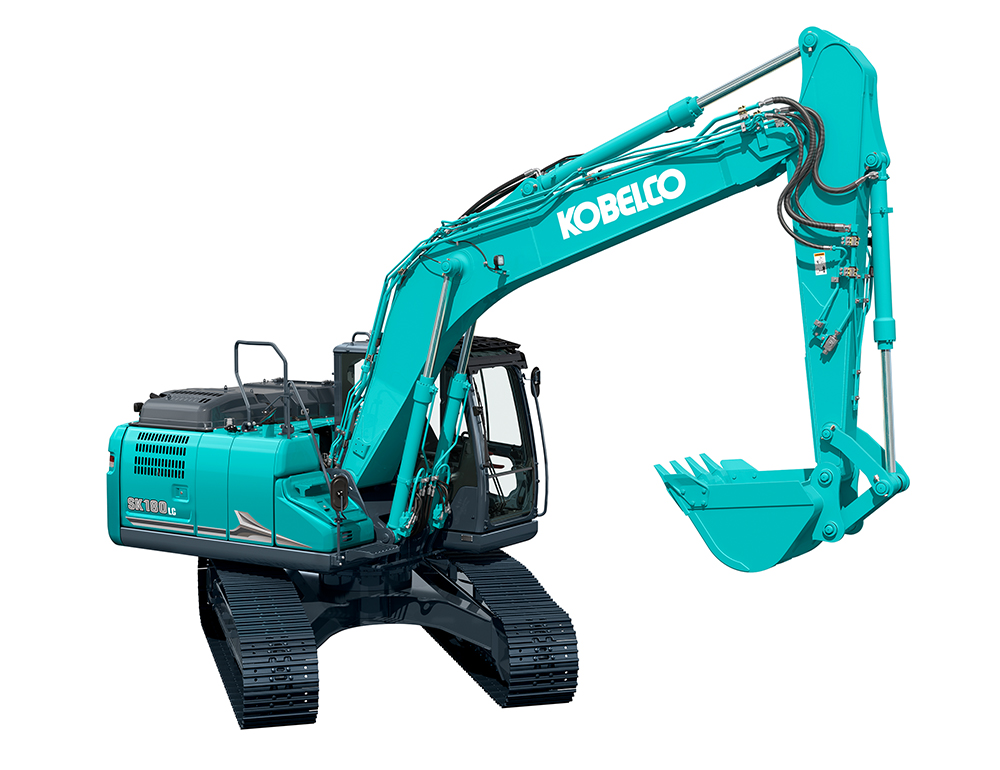

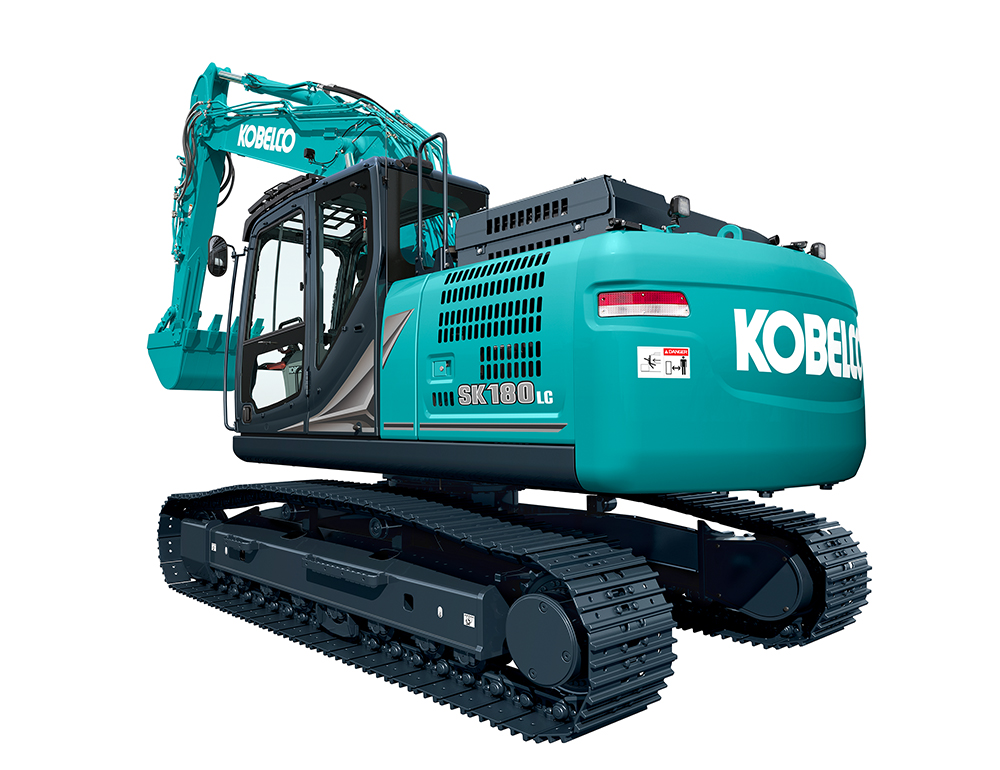

The Kobelco SK180-11 and SK180LC-11 excavators are versatile 18–21 tonne machines designed for efficiency, control, and dependable performance across civil construction, infrastructure, and general earthmoving applications. Powered by a fuel-efficient Yanmar engine and advanced hydraulic system, they deliver strong digging force, smooth operation, and responsive control. Features such as independent travel, multiple work modes, and optimised fuel consumption help maximise productivity while reducing operating costs on busy job sites.

Built with a focus on operator experience and long-term durability, these Kobelco excavators feature a modern ergonomic cab with air suspension seating, intuitive controls, and a large 10-inch monitor with integrated camera views for improved visibility and safety. Reinforced structural components, easy maintenance access, and GEOSCAN remote monitoring provide reliable performance and real-time machine insights—ensuring your equipment stays productive in demanding conditions.

Specifications

Transport Dimensions

Length, Width & Height

8.7 x 2.49 x 3.08 m

Operating Weight

19,100 kg

Refilling Capacities

Fuel Tank

280 L

Hydraulic Oil Tank

122 (200) L

Working Range

Max. Digging Depth

5.99 m

Max. Digging Reach

8.97 m

Engine

Rated Power Output

100.0 kW

Rated Torque

602 Nm

Breakout Force

Bucket Digging Force

126 kN (ISO 6015) Power Boost engaged

Arm Crowding Force

90.6 kN (ISO 6015) Power Boost engaged

Hydraulic System

Max. Pump Flow

2 x 160 L/min + 20, 44 L/min

Standard Auxiliary

N&B + Tilt Piping

Excavator Brochure

SK180-11 & SK180LC-11 Tier 4 Brochure

Compare Excavator

Compare this model
