Medium Excavators
SK180-11
- Tier IV Final Compliant Engine
- Enhanced durability takes productivity to a new level.
- A cab that puts the operator first is key to improved safety.
- 2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

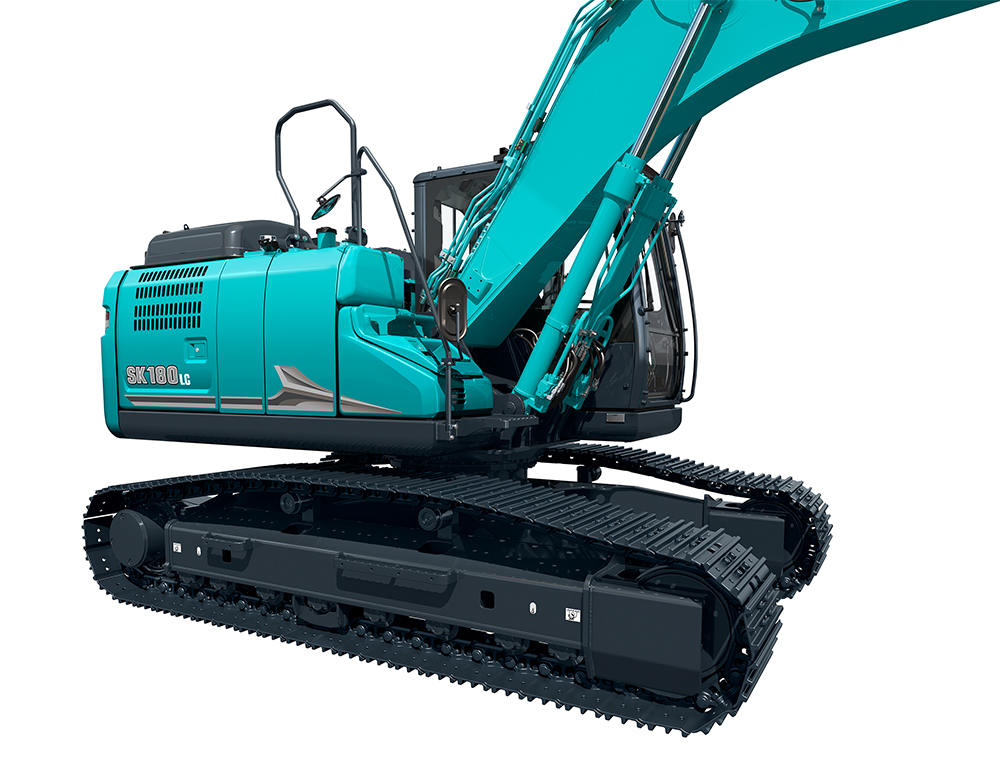

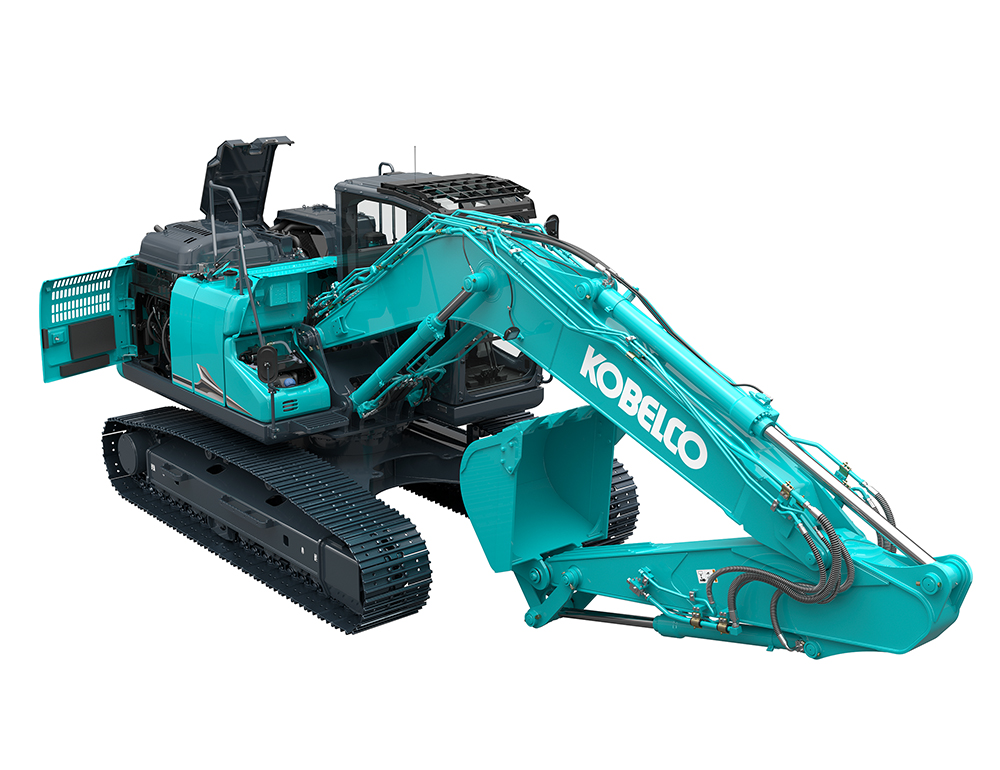

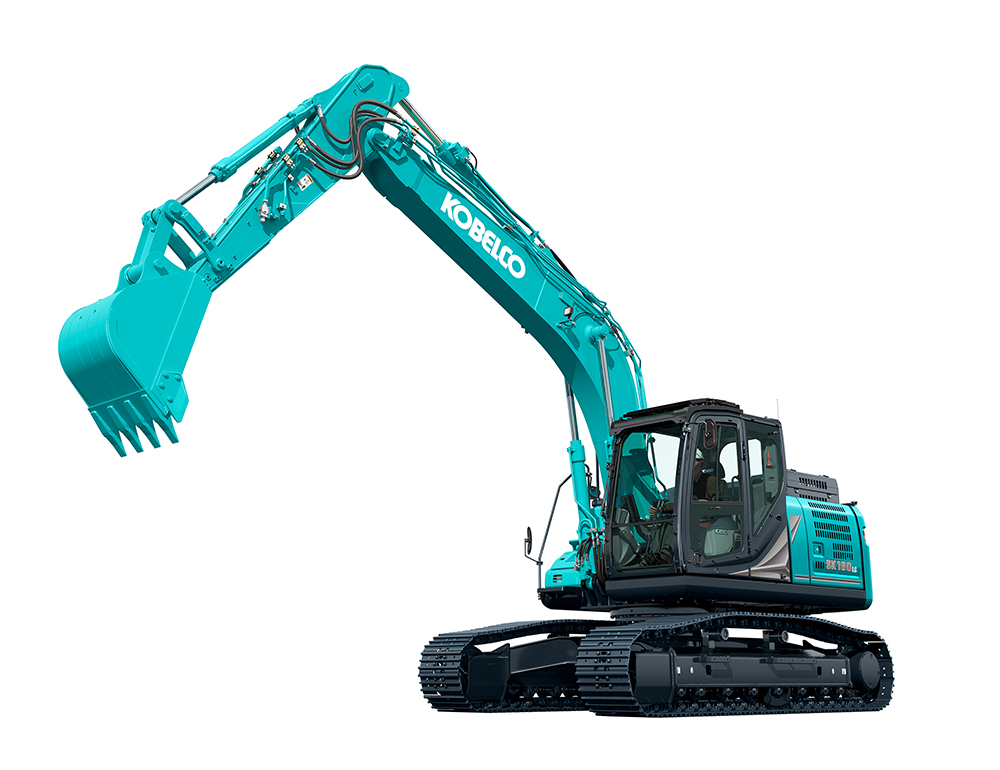

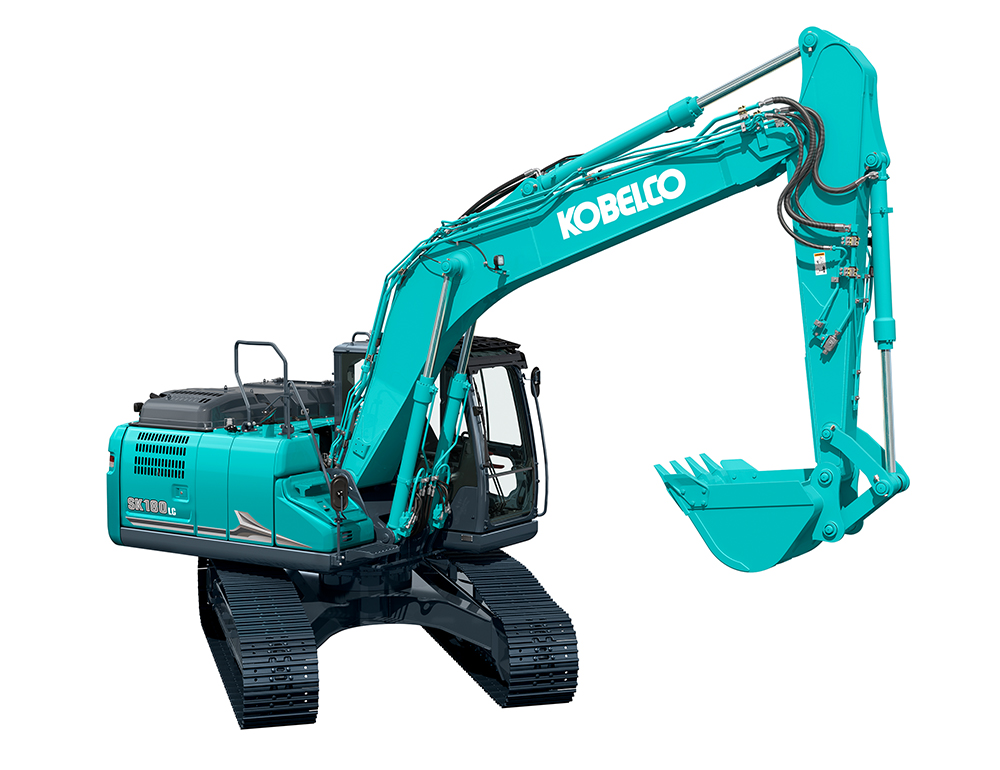

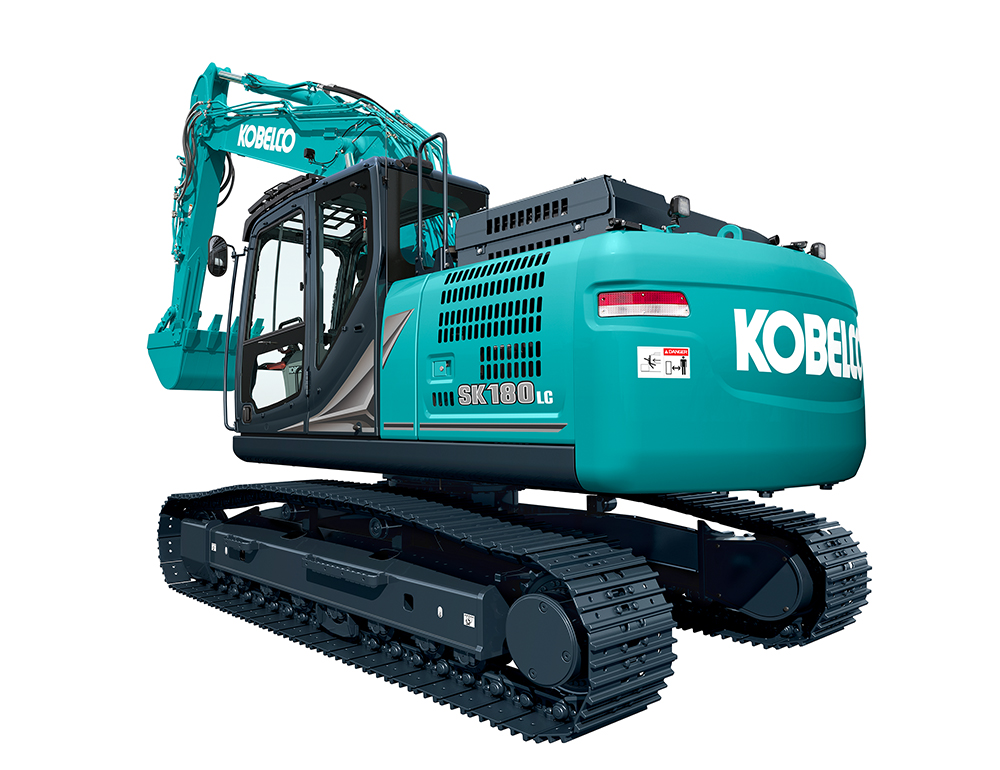

The Kobelco SK180-11 and SK180LC-11 excavators are versatile 18–21 tonne machines designed for efficiency, control, and dependable performance across civil construction, infrastructure, and general earthmoving applications. Powered by a fuel-efficient Yanmar engine and advanced hydraulic system, they deliver strong digging force, smooth operation, and responsive control. Features such as independent travel, multiple work modes, and optimised fuel consumption help maximise productivity while reducing operating costs on busy job sites.
Built with a focus on operator experience and long-term durability, these Kobelco excavators feature a modern ergonomic cab with air suspension seating, intuitive controls, and a large 10-inch monitor with integrated camera views for improved visibility and safety. Reinforced structural components, easy maintenance access, and GEOSCAN remote monitoring provide reliable performance and real-time machine insights—ensuring your equipment stays productive in demanding conditions.
Specifications
Transport Dimensions
Length, Width & Height
8.7 x 2.49 x 3.08 m
Operating Weight
19,100 kg
Refilling Capacities
Fuel Tank
280 L
Hydraulic Oil Tank
122 (200) L
Working Range
Max. Digging Depth
5.99 m
Max. Digging Reach
8.97 m
Engine
Rated Power Output
100.0 kW
Rated Torque
602 Nm
Breakout Force
Bucket Digging Force
126 kN (ISO 6015) Power Boost engaged
Arm Crowding Force
90.6 kN (ISO 6015) Power Boost engaged
Hydraulic System
Max. Pump Flow
2 x 160 L/min + 20, 44 L/min
Standard Auxiliary
N&B + Tilt Piping
