Medium Excavators

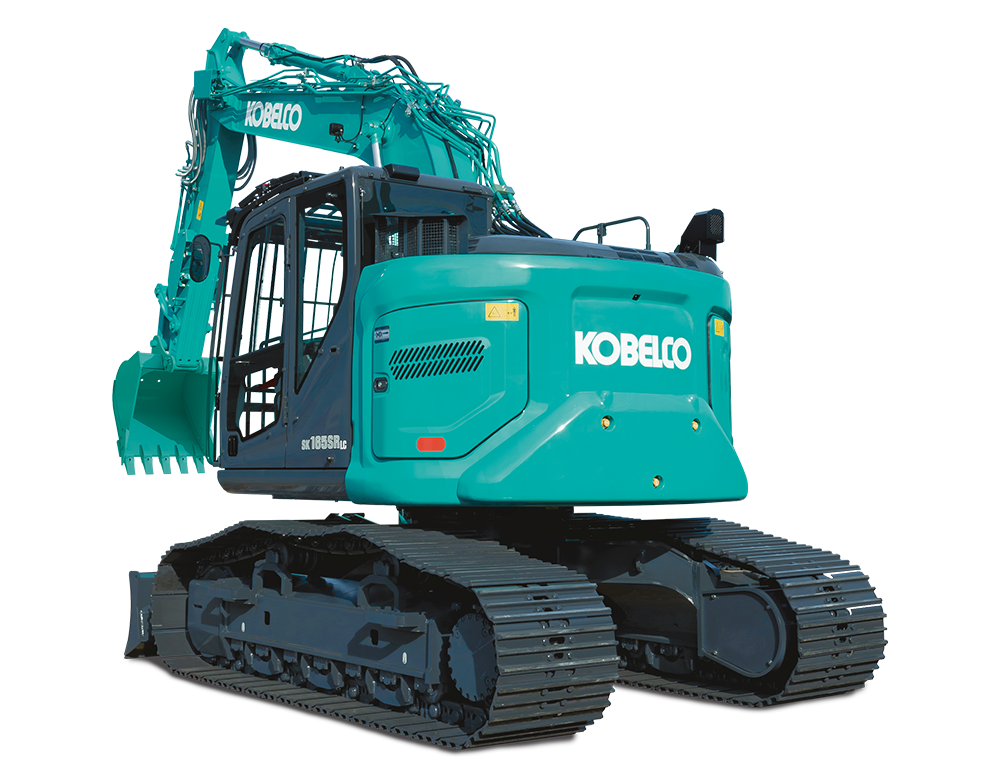

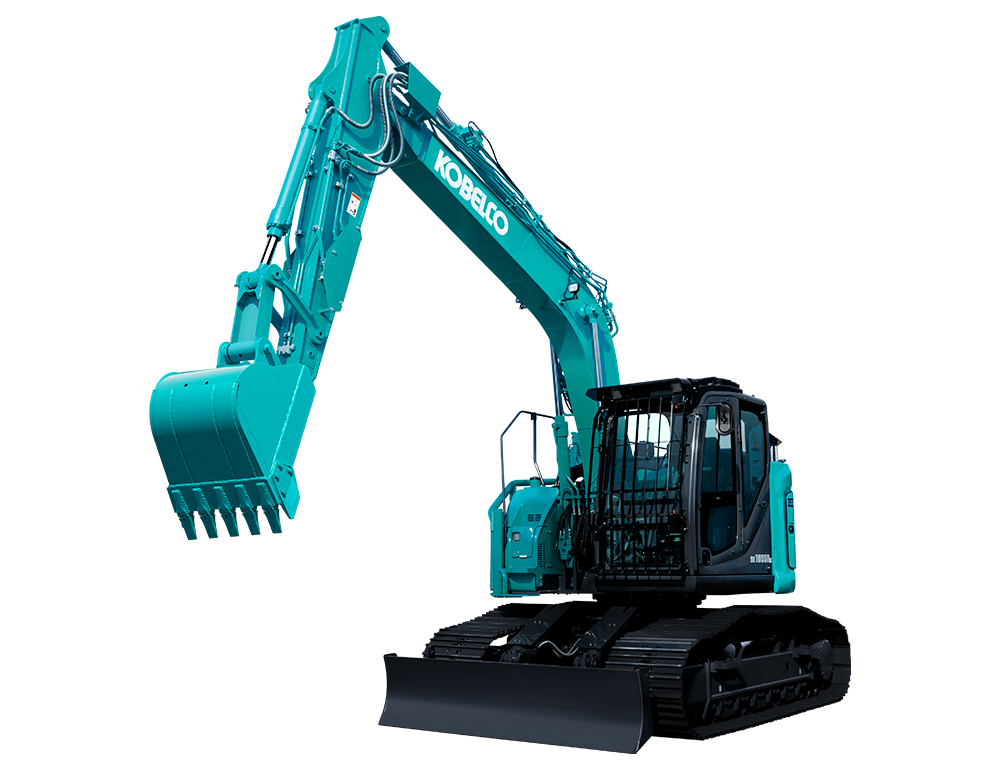

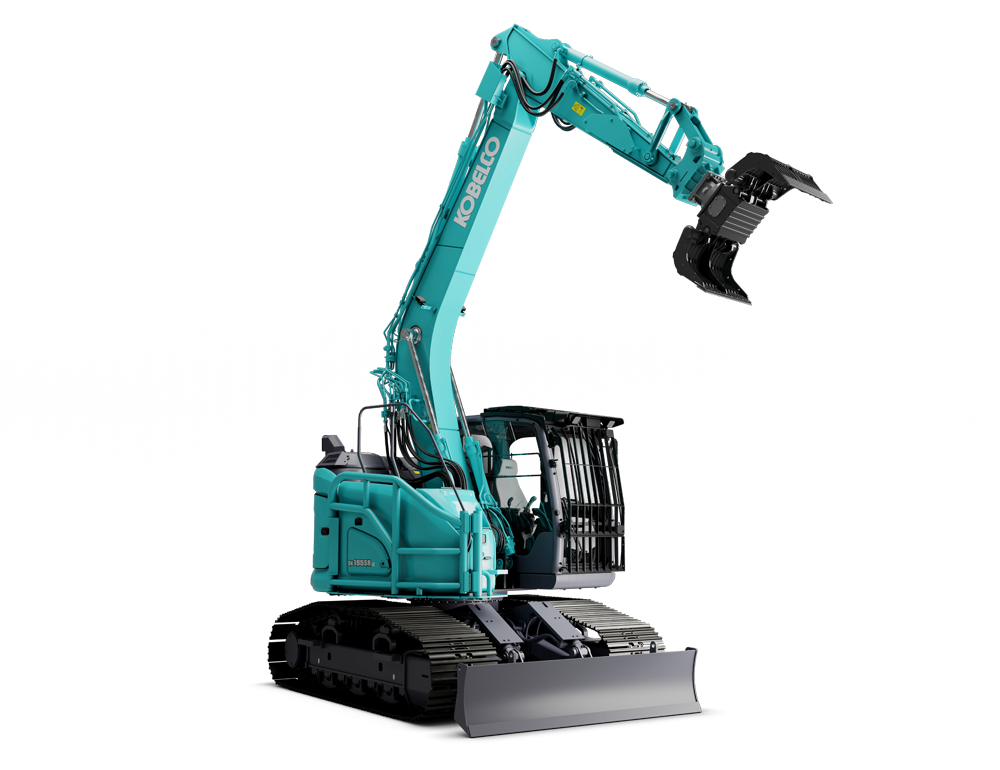

SK165SRLC-7
- Short radius versatility meets comprehensive heavy-duty guarding.
- An improved undercarriage, 21% more drawbar pull and an optional blade.
- Ready for everything from forestry to urban construction.
- 2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.
The Kobelco SK165SRLC-7 combines short radius versatility with the strength and durability needed to take on demanding worksites.
Designed to perform across a wide range of applications, its heavy-duty undercarriage, high ground clearance and enhanced component protection make it well suited to challenging terrain and tough working conditions. At the same time, its compact short radius design provides the versatility to work confidently where space is limited.
Inside the cab, operator comfort and control remain a priority, while Kobelco’s exclusive iNDr Cooling System helps deliver quiet operation and effective filtration in dusty environments.
From forestry and land clearing to civil construction and general earthmoving, the SK165SRLC-7 is built to handle demanding applications without compromising the versatility that Kobelco short radius excavators are known for.
Specifications
Transport Dimensions
Length, Width & Height
8.01 x 2.69 x 3.05 m* (*700 mm shoe)
Operating Weight
18,100 kg
Refilling Capacities
Fuel Tank
186 L
Hydraulic Oil Tank
89.9 (176) L
Working Range
Max. Digging Depth
5.33 m
Max. Digging Reach
8.37 m
Engine
Rated Power Output
86 kW
Rated Torque
375 Nm
Breakout Force
Bucket Digging Force
105.4 kN
Arm Crowding Force
64.0 kN
Hydraulic System
Max. Pump Flow
2 x 142 L/min + 66, 22 L/min
Standard Auxiliary
N&B + Tilt Piping
