Large Excavators
SK530XDLC-11
- Tier IV Final Compliant Engine.
- Heavy-duty lifting delivers impressive 23,380 kg capacity.
- 321 kN digging force conquers hard ground confidently.
- Kobelco’s GEOSCAN telematics system is also provided free of charge for 5 years, allowing remote access to a comprehensive set of machine operational and maintenance data from any web enabled device.
- Includes Kobelco’s Extended Major Component Warranty of 4 years/6,000 hours!

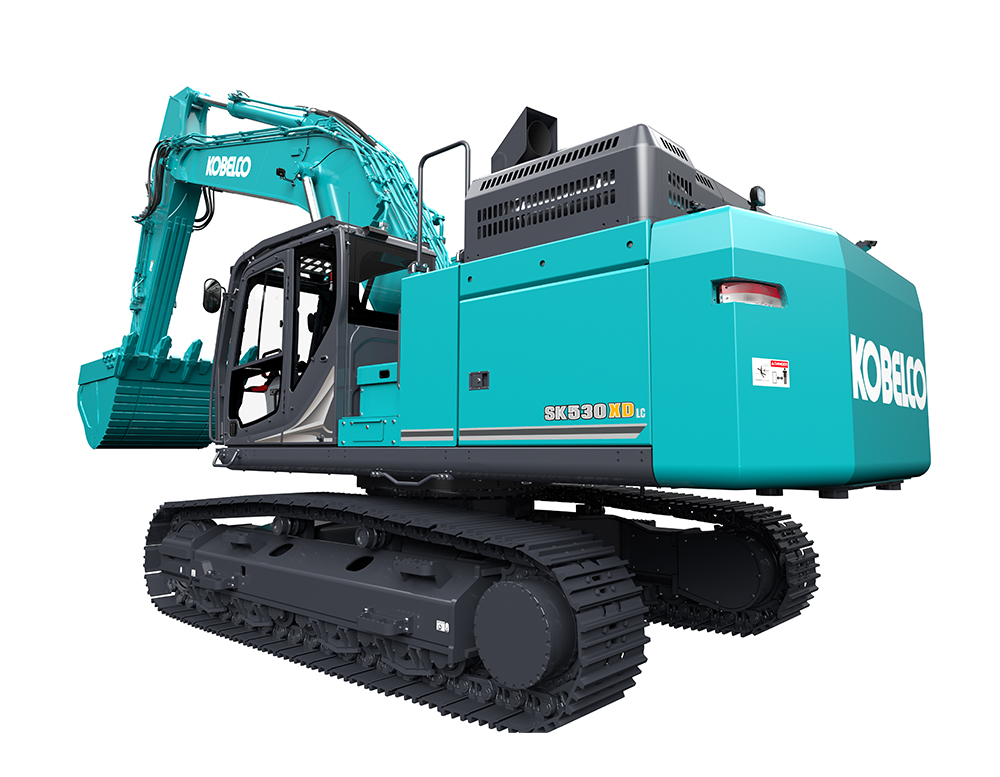

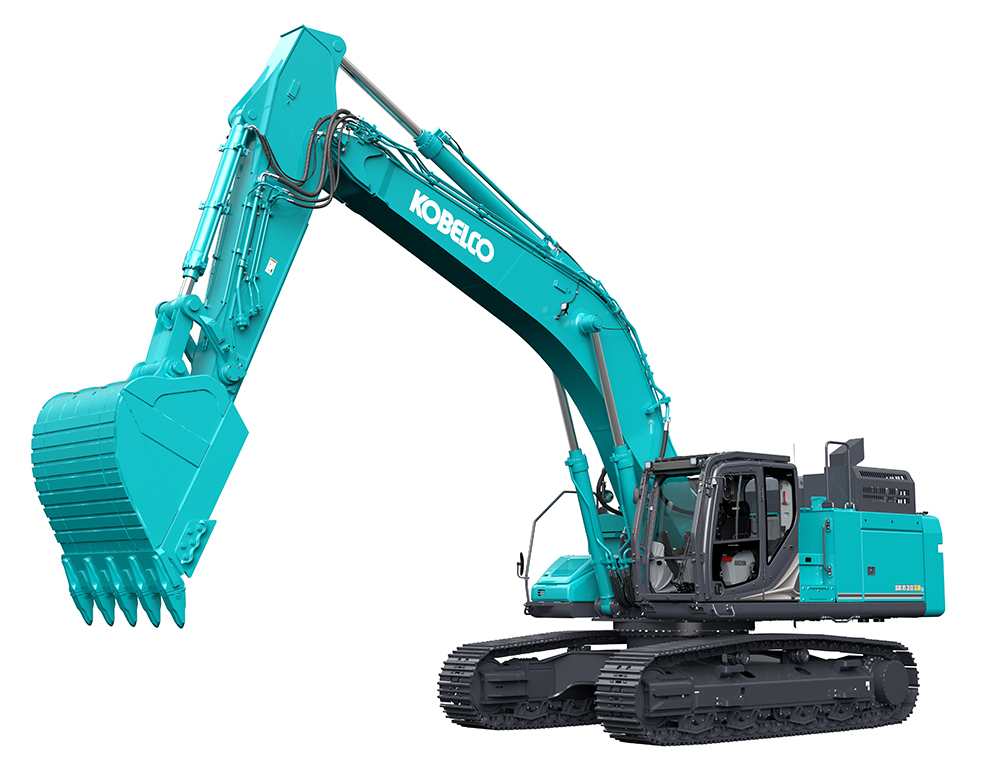

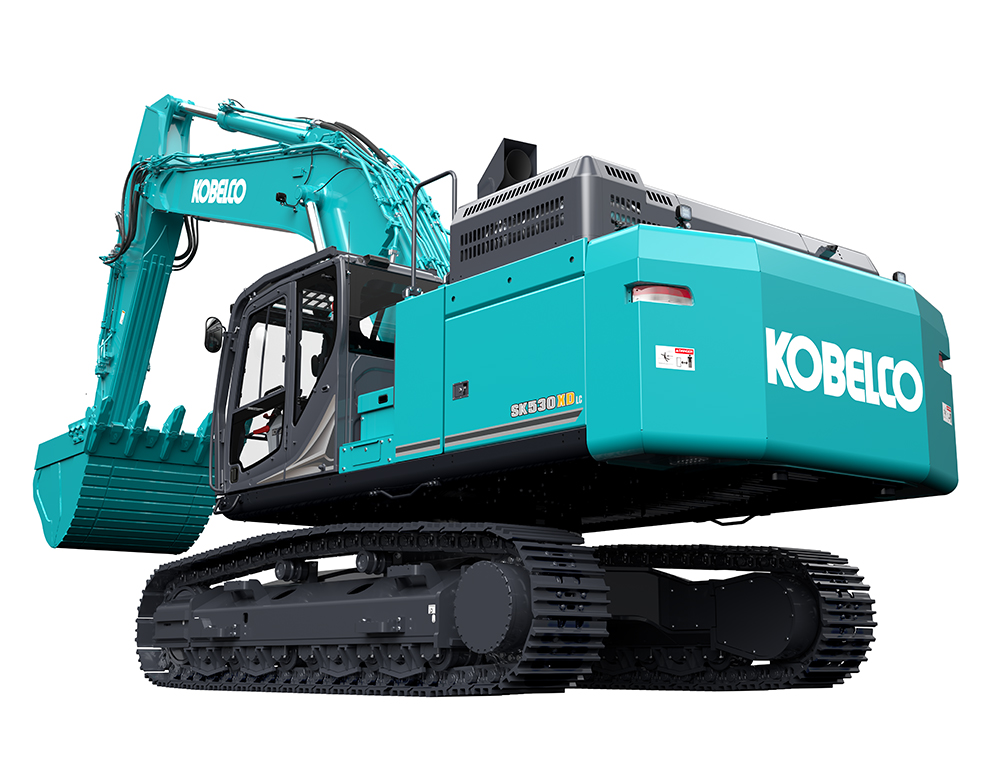

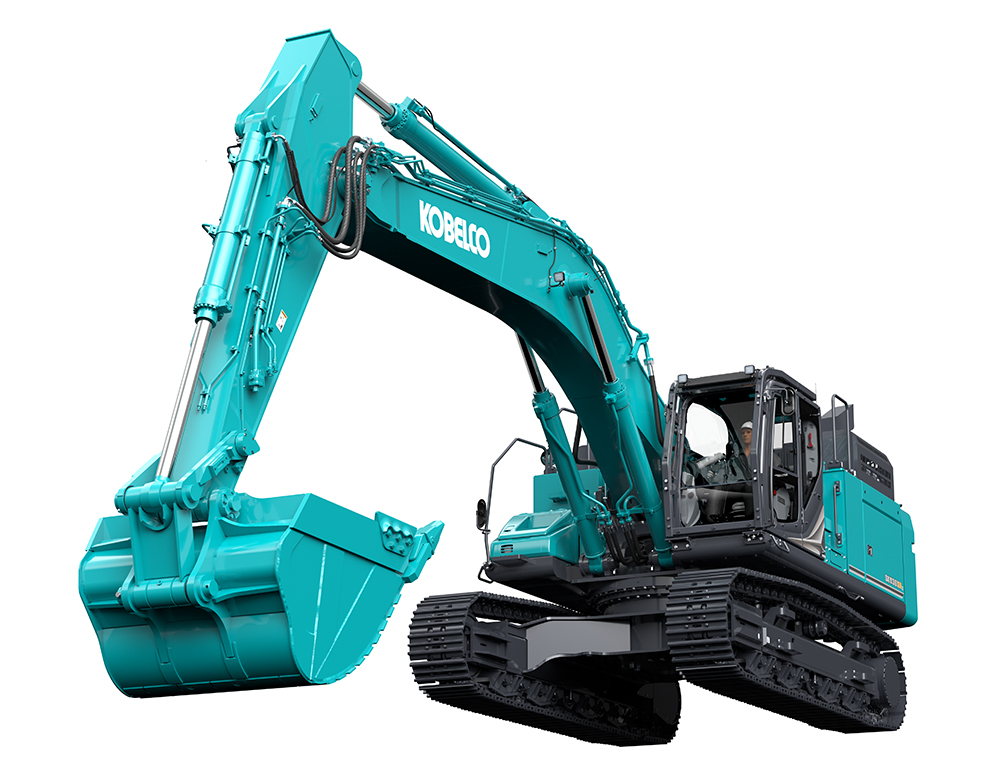

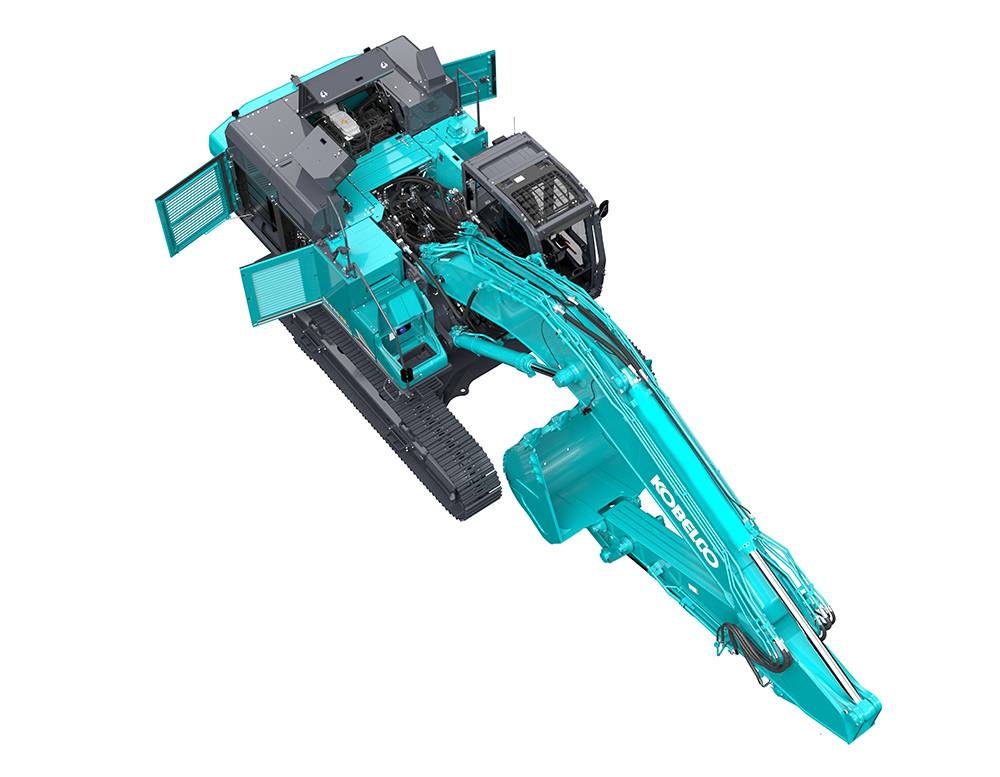

Engineered for high-volume earthmoving, mining and quarry operations, the SK530XDLC-11 is a heavy-duty, 53-tonne class excavator designed to deliver exceptional power, stability and productivity in demanding applications. Delivering impressive hydraulic performance with up to 321 kN of bucket digging force and a lifting capacity of up to 23,380 kg, it provides the strength and precision required for heavy construction, quarry and infrastructure projects where performance and reliability are essential.

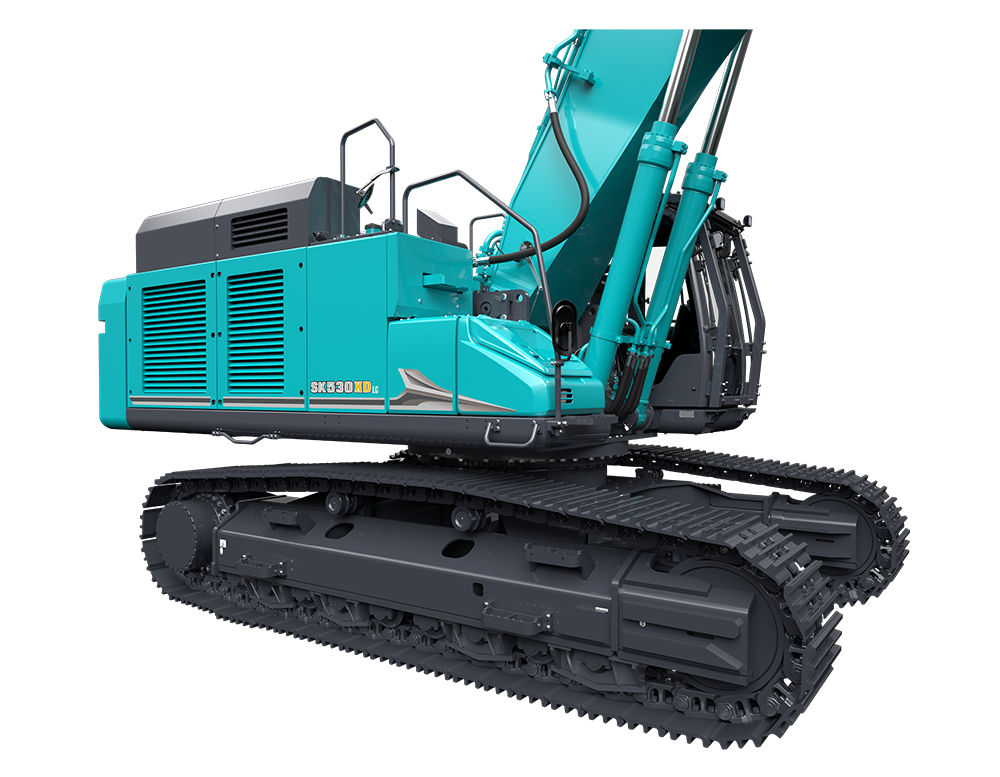

Built for unbeatable durability, the SK530XDLC-11 features a reinforced boom and arm, heavy-duty undercarriage, thicker steel track shoes, strengthened guide frames and increased protection for critical hydraulic components, making it ideally suited to harsh rock and quarry conditions.
Specifications
Transport Dimensions
Length, Width & Height
12.16 x 3.58 x 3.67 m
Operating Weight
54,700 kg
Refilling Capacities
Fuel Tank
720 L
Hydraulic Oil Tank
370 (803) L
Working Range
Max. Digging Depth
7.77 m
Max. Digging Reach
12.07 m
Engine
Rated Power Output
345 kW
Rated Torque
1,980 Nm
Breakout Force
Bucket Digging Force
321 kN
Arm Crowding Force
242 kN
Hydraulic System
Max. Pump Flow
2 x 370 L/min + 58.5 L/min + 27 L/min
Standard Auxiliary
N&B + Tilt Piping
