Specialty Excavators

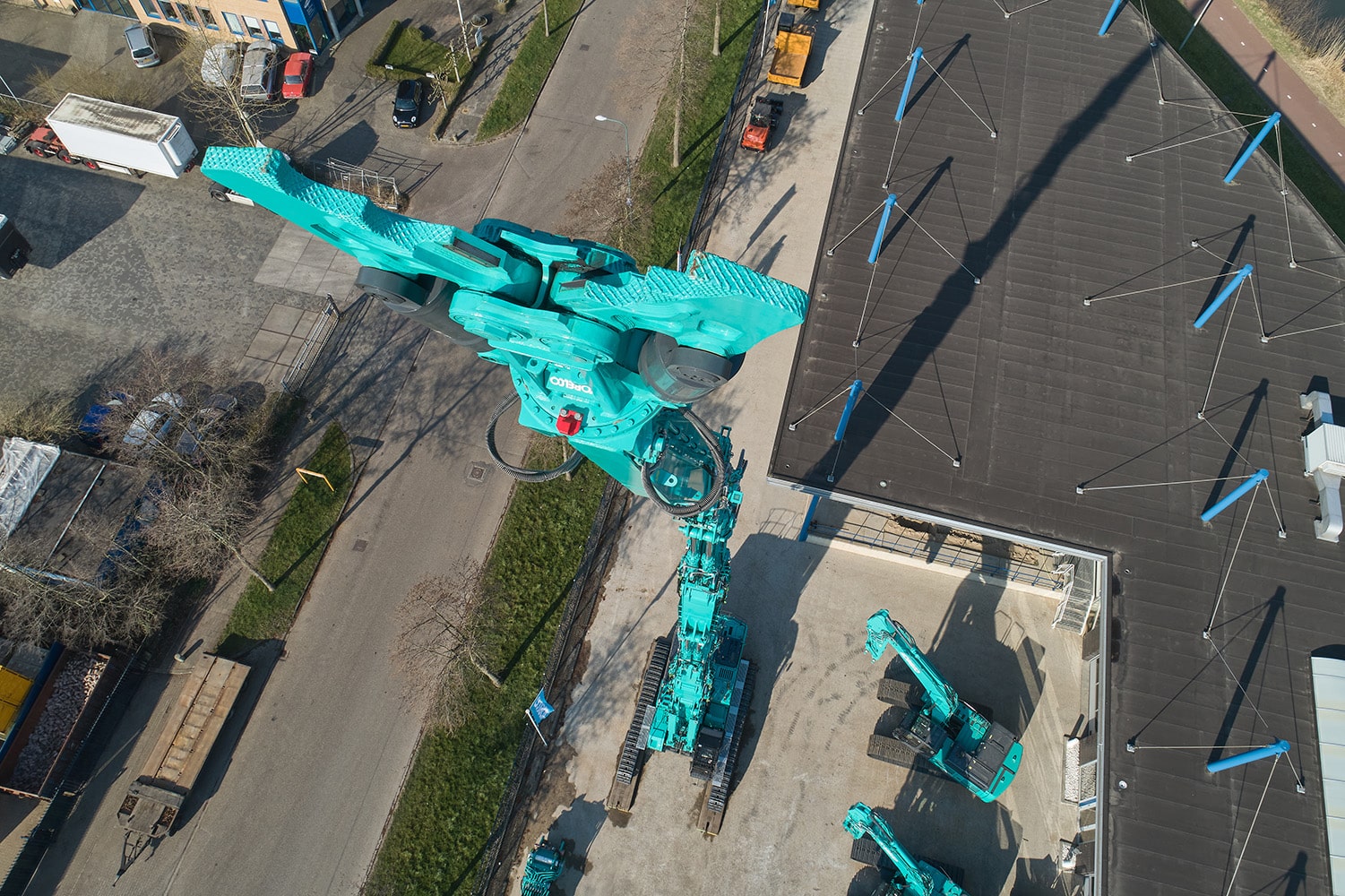

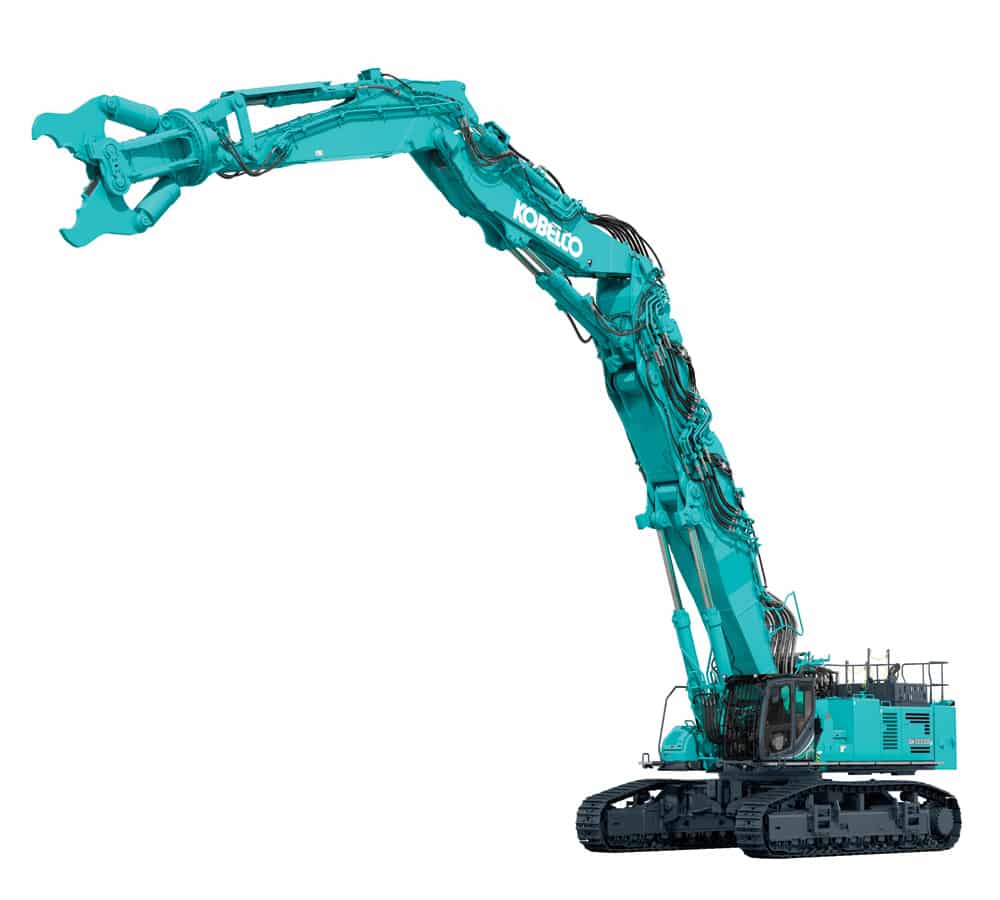

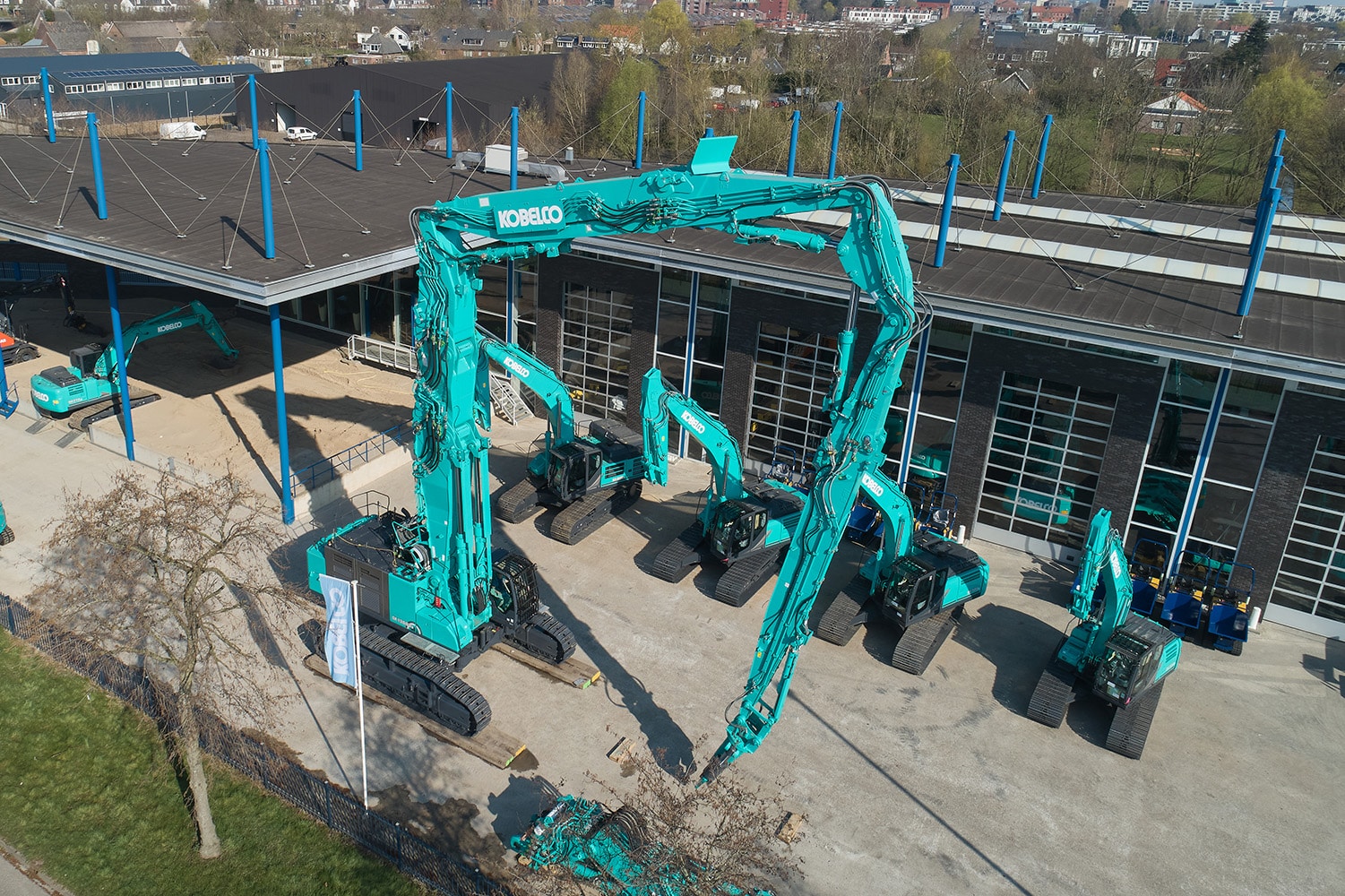

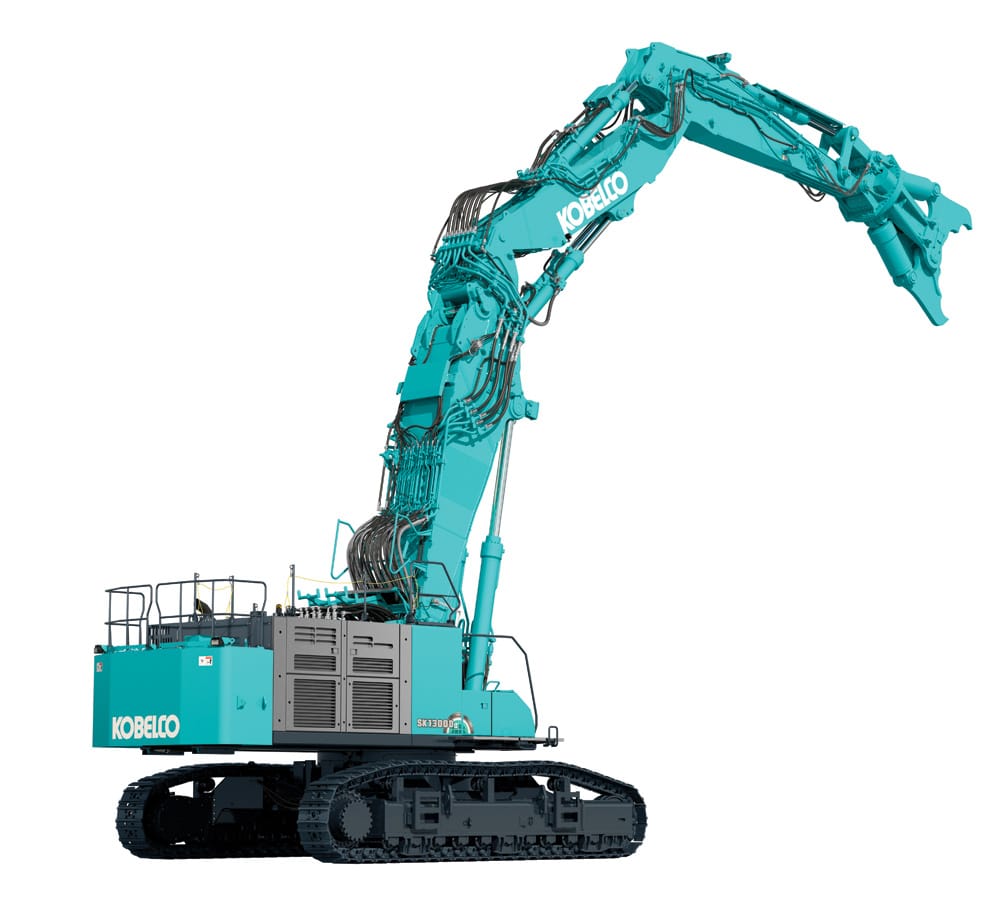

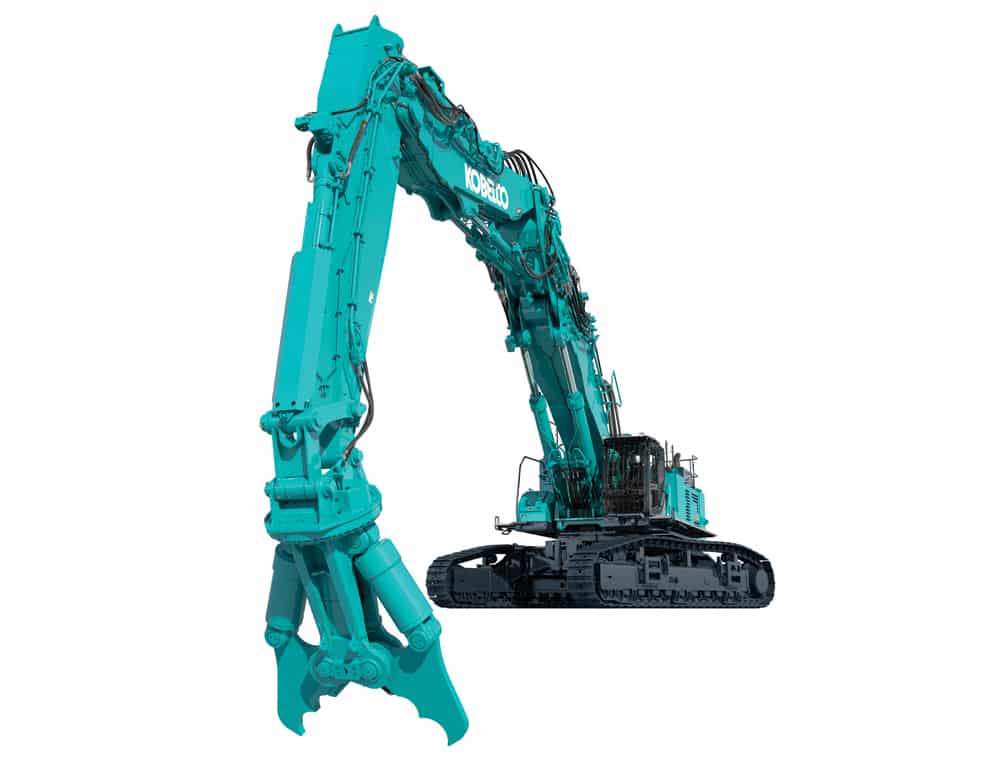

SK1300DLC
- Larger tools, higher reach. Rebuilding the future with the Kobelco SK1300DLC.
- World’s largest OEM manufactured building demolition machine.
- Kobelco-developed NEXT ADVANCE system means that it can be adapted for multiple applications on the jobsite.

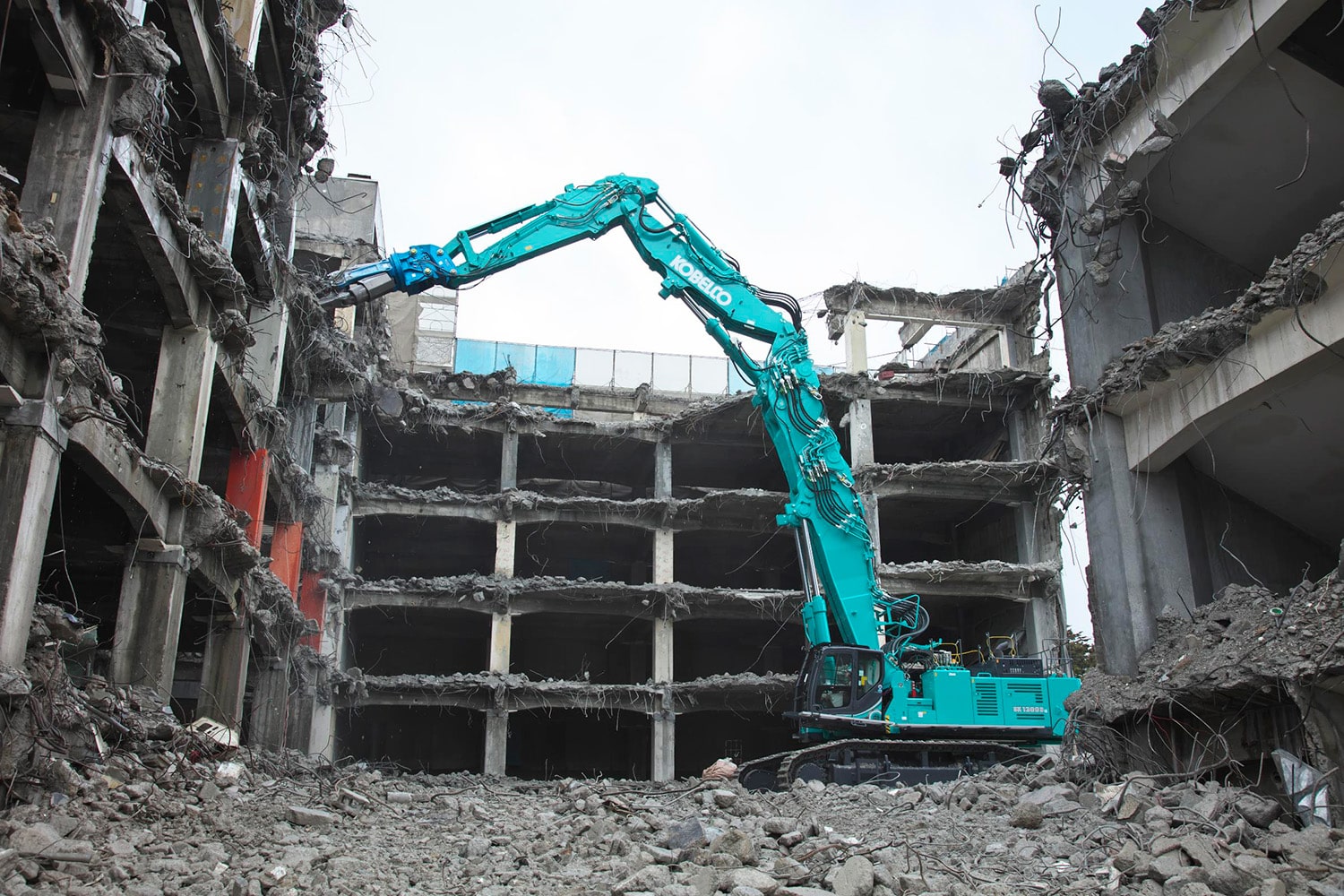

With an operating weight of 137 tonnes and a colossal reach of up to 40m, the SK1300DLC is currently the world’s largest OEM manufactured building demolition machine. Its introduction to the European market in March 2022 was met with high expectations due to its superior productivity, versatility, easy transportation and the ability to use more powerful crushers at new heights

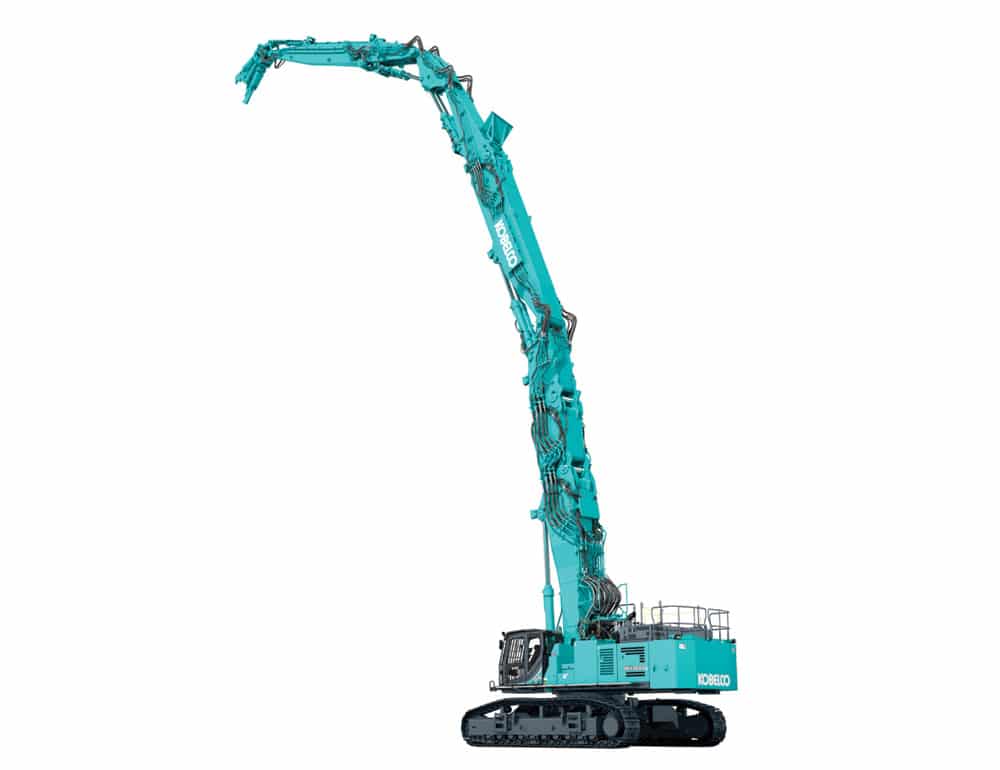

The NEXT ADVANCE 4-piece high reach demolition attachment was developed to achieve greater working heights with heavier tools; the new articulated structure enables a heavy tool to be elevated while keeping the machine’s centre of gravity low. This makes it possible to overcome the current operational limits of other 100 tonne-class machines.
Specifications
Transport Dimensions
Length, Width & Height
10.92 m x 5.19 m x 4.82 m
Operating Weight
137,700 kg
Refilling Capacities
Fuel Tank
960 L
Hydraulic Oil Tank
599 (1,070) L
Working Range
Max. Digging Depth
7.98 m
Max. Digging Reach
39.6 m at 4.3 tonne
Engine
Rated Power Output
382 kW
Rated Torque
2,250 Nm
Breakout Force
Bucket Digging Force
-
Arm Crowding Force
-
Hydraulic System
Max. Pump Flow
2 x 504 L/min + 49.3, 30.1 L/min
Standard Auxiliary
N&B + Tilt Piping
